Belt Driven Conveyors

Conveyor Systems & Engineering, Inc. offers reliable Belt Driven Conveyors designed for efficient transport and accumulation of light boxes, tote bins, and baskets. These conveyors are ideal for operations requiring gentle handling and smooth product flow. With minimal back pressure, they ensure products are accumulated safely without damage or shifting. Their robust design is built to perform consistently across various industries. Perfect for light-duty applications, they strike the right balance between performance and protection.

Our Belt Driven Conveyors are not only efficient but also economical, offering a cost-effective solution for streamlined material handling. Whether for warehouse operations, packaging lines, or distribution centers, these conveyors integrate seamlessly into your workflow. The low-maintenance design reduces downtime while enhancing productivity. With customizable lengths and configurations, they adapt easily to your specific needs. Trust Conveyor Systems & Engineering, Inc. to deliver quality-driven solutions that keep your business moving.

Product Features

Versatile Material Handling: Effectively transports a wide range of materials, including bulk solids, packaged goods, and irregularly shaped items.
Adjustable Speed Control: Allows for precise control over the rate of material flow to match different production requirements.
Durable Construction: Built with robust materials and components to ensure long-term, consistent performance with minimal maintenance.
Customizable: Can be tailored in length, width, belt material, and incline/decline angles to suit specific application needs and layouts.
Smooth and Quiet Operation: Designed for efficient and relatively quiet material movement, contributing to a better working environment.
Easy Integration: Seamlessly integrates with other material handling equipment and production line processes.
Low Maintenance Requirements: Simple design and fewer moving parts generally lead to reduced maintenance needs and downtime.
Positive Material Tracking: The continuous belt ensures stable and reliable movement of items without slippage in most applications.
Safety Features: Incorporates various safety mechanisms such as emergency stops, belt guards, and overload protection to ensure operator safety.
Scalable and Modular Design: Can be easily extended or modified to accommodate future changes in production volume or layout.

Standard Specifications

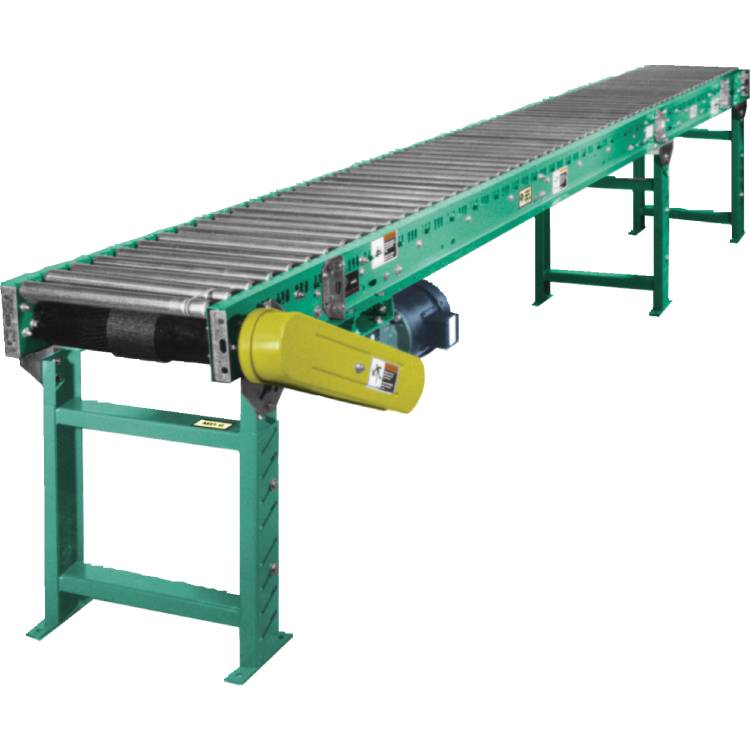

Belt Driven Live Roller Accumulating Conveyor: MODEL "138CAP"

Driving Belt	4" wide Black PVC 120 belt.
Bed	Roller bed width between frames, 10", 13", 16" and 22". 5½" x 1½" x 12 gauge powder painted formed steel channel frame, bolted together with butt couplings and floor supports.
Tread Rollers	1⅜" diameter x 18 gauge galvanized tread rollers with ⁵⁄₁₆" hex shafts on 1½" or 3" centers. Safety pop-out design prevents damage to product or harm to personnel if caught between belt and tread rollers.
Pressure Rollers	1⅜" diameter x 18 gauge galvanized pressure rollers with ⁵⁄₁₆" hex shafts on 6" centers.
X-Bracing	Frame Squaring device supplied on conveyors 40 feet and longer on every other bed section. X-bracing insures good product and belt tracking.
Tail Pulley	4" diameter crowned with ¹³⁄₁₆" shaft.
Drive Pulley	4" diameter crowned and fully lagged, with ¹³⁄₁₆" diameter shaft. Located at infeed end of conveyor.
Snub Roller	2" diameter adjustable, located directly behind drive and tail pulley.
Return Idler	1.9" diameter, adjustable, on 10'0" centers.
Floor Supports	30" to 44" adjustable from floor to top of rollers. One support supplied at each end of conveyor and at each bed joint.
Take-Up	Located at discharge end of conveyor, provides 12" of belt take-up.
Bearings	Sealed, prelubricated with cast iron housings.
Speed Reducer	Heavy duty worm gear reducer.
Motor	½ HP 230/460-3-60 TE motor.
Belt Speed	60 FPM constant.
Capacity	100 pounds per foot. Not to exceed Load Capacity Chart.

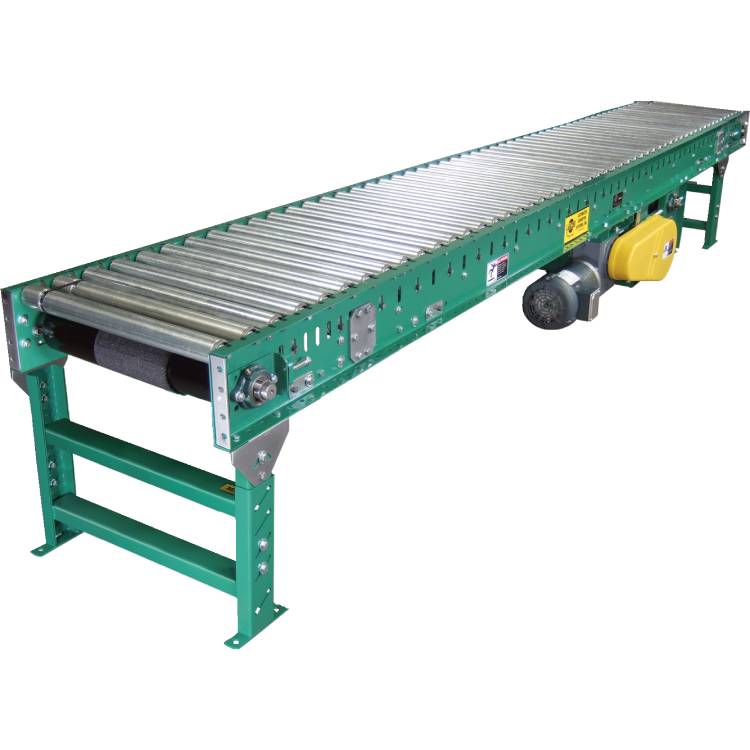

Belt Driven Live Roller Accumulating Conveyor: MODEL "190CAP"

Driving Belt	8" wide for 15" and 21" between frames, 12" wide for 27" between frames, 16" wide for 33" and 39" between frames; black PVC 120 belt.
Bed	Roller bed width between rails, 15", 21", 27", 33", or 39". 7" x 1½" x 12 gauge powder painted formed steel channel frame, bolted together with butt couplings and floor supports.
Tread Rollers	1.9" diameter x 16 gauge galvanized steel rollers spaced on 2¼", 3", 4½" or 6" centers. Safety pop-out design prevents damage to product or harm to personnel if caught between belt and tread rollers.
Pressure Rollers	1.9" diameter x 16 gauge galvanized steel rollers spaced on 6", 9" or 12" centers, cam adjusted.
X-Bracing	Frame Squaring device supplied on conveyors 40 feet and longer on every other bed section. X-bracing insures good product and belt tracking.
Tail Pulley	4" diameter crowned with ¹³⁄₁₆" diameter shaft.
Drive Pulley	8" diameter, crowned and fully lagged, with ¹⁷⁄₁₆" diameter shaft.
Snub Roller	2½" diameter adjustable, located directly behind drive pulley. 2” diameter at each end directly behind terminal pulleys.
Return Idler	1.9" diameter, adjustable, on 10'0" centers.
Floor Supports	Adjustable 31½" to 45½" from floor to top of rollers. One support supplied at each end of conveyor and at each bed joint.
Take-Up	Located in center drive, provides 24" of belt takeup.
Bearings	Sealed prelubricated with cast iron housings.
Speed Reducer	C-Face mounted heavy duty worm gear reducer.
Motor	½ HP 230/460-3-60 TE motor.
Belt Speed	60 FPM constant.
Capacity	150 Ibs. per foot. Not to exceed Load Capacity Chart.

Key Applications

Food Processing: Transporting raw materials (fruits, vegetables, grains) and packaged food products, often with specific hygiene and safety standards.
Manufacturing: Moving components, parts, and finished goods along assembly lines in various industries like automotive, electronics, and appliance production.
Warehousing and Distribution: Handling packaged goods, cartons, and materials within warehouses, distribution centers, and fulfillment centers.
Mining and Quarrying: Conveying bulk materials like coal, ore, and minerals over long distances, often in challenging outdoor environments.
Agriculture: Transporting crops, grains, and feed on farms, in processing facilities, and in storage.
Recycling and Waste Management: Sorting and moving recyclable materials (paper, plastic, metal) and handling waste in processing plants.
Construction: Moving materials like sand, gravel, and cement at construction sites.
Airport Baggage Handling: Efficiently transporting luggage and cargo within airport terminals.
Packaging: Integrating with packaging machinery to move products through wrapping, labeling, and boxing processes.
Postal and Courier Services: Sorting and transporting letters, parcels, and packages in postal facilities and courier hubs.
