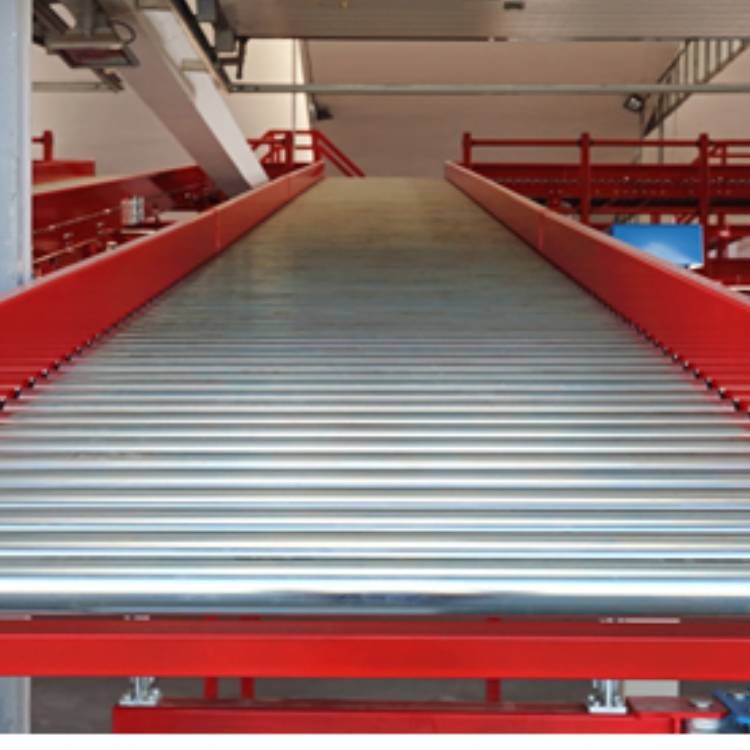

Gravity Roller Conveyors

Efficient & Economical Gravity Roller Conveyors

Our gravity roller conveyors provide a simple, cost-effective material handling solution with zero power consumption. Built for free-flowing movement of goods, they’re perfect for packaging lines, order fulfillment, and assembly operations. Whether you're moving lightweight cartons or medium-duty loads, these conveyors are designed to improve throughput with minimal effort.

Easy to install and maintain, gravity roller conveyors offer unmatched flexibility in layout and can be integrated with existing systems. With a range of roller sizes and frame styles, we can customize them for your specific workflow.

Also explore: Warehouse Roller Conveyors | Aluminum Gravity Conveyors

Gravity conveyors use unpowered rollers and a slight incline to move products using gravity alone. This simple design eliminates the need for motors or electricity, making it highly energy-efficient. They are ideal for transporting flat-bottomed boxes and goods smoothly through a facility. These conveyors are especially useful in reducing operational costs due to their low maintenance and power-free operation. As a result, they’re a budget-friendly and reliable choice for many production lines.

Enhance your operations with gravity roller conveyors from Conveyor Systems & Engineering, Inc. (CSE), a trusted manufacturer with over 35 years of industry experience. We specialize in crafting durable, custom gravity conveyors designed to meet the toughest demands of warehouses and other facilities. Our commitment to quality and cost-effectiveness ensures solutions that boost productivity without breaking the budget. At CSE, we prioritize understanding your unique needs to deliver efficient, tailored conveyor systems. Reach out today for expert consultation and a free quote.

Product Features

Heavy-Duty Construction – Built for durability to perform reliably in temporary/permanent industrial settings, including shipping & assembly plants.
Customizable Design – Tailored to your specifications, including frame width, roller spacing, leg supports, and overall conveyor length.
Versatile Application – Perfect for distribution centers, warehouses, assembly lines, order picking, shipping, receiving, and workstation support.
Smooth Material Flow – Designed to enhance pallet and inventory movement, reducing bottlenecks and increasing productivity.
Gravity-Powered Efficiency – Utilizes the natural force of gravity for cost-effective, energy-free transportation of goods.
Wide Range of Configurations – Available in straight sections, curves, and temporary or permanent lines to suit your workspace layout.
High Load Capacity – Engineered to safely handle heavier loads while minimizing the risk of roller jamming or misalignment.
Enhanced Safety & Accessibility – Created to improve comfort and safety while reducing handling errors and protecting conveyed materials.
Corrosion-Resistant Options – Available with stainless steel frames and rollers for use in environments exposed to moisture, chemicals, or volatile materials.
Expert Support & Fast Customization – Designed in close collaboration with customers to deliver precision solutions with free consultations and expert advice.

Standard Specifications

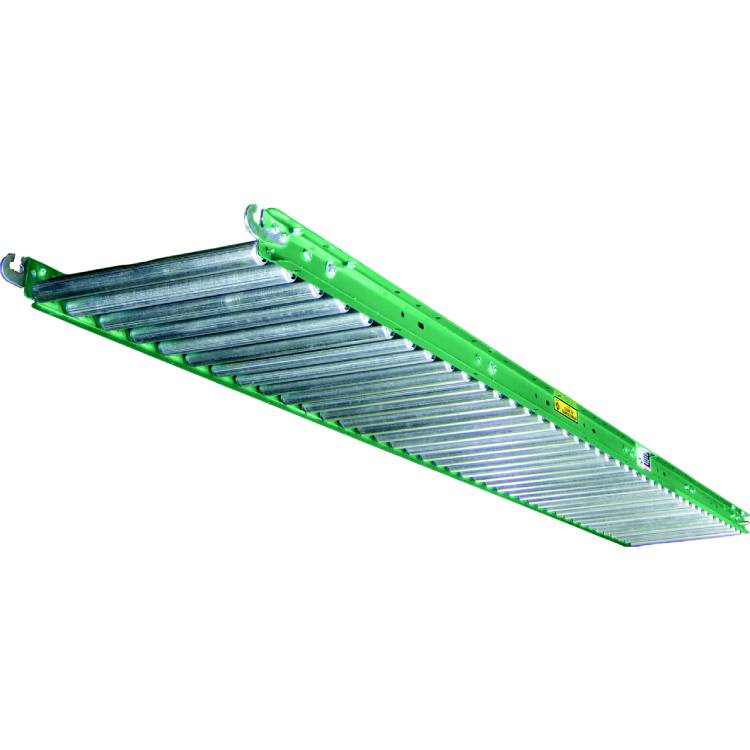

Steel, Model 138SR and Model 138SRH

Frames	2½" deep x 1" flange x 12 gauge powder painted formed steel. Rugged cross members bolted between channels.
Rollers	1⅜" diameter x 18 gauge galvanized steel tubing with swaged ends for a firm bearing seat. Rollers have spring loaded axle for easy removal or insertion.
Axles	¼ " diameter cold rolled steel for Model 138SR; ⁵⁄₁₆" hex for Model 138SRH.
Couplings	Hook and rod.
Widths	12", 15", 18" and 24" overall width.
Length	5' and 10' long straight sections.
Capacity	See Frame Capacity Chart.

Aluminum, Model 138AR

Frames	2½" deep x 1" flange x ⅛" heat treated aluminum. Rugged aluminum cross members bolted between channels.
Rollers	1⅜" diameter heat treated aluminum tubing with swaged ends for a firm bearing seat. Rollers have spring loaded axle for easy removal or insertion.
Axles	¼ " diameter cold rolled steel.
Couplings	Hook and rod.
Widths	12", 15", 18" and 24" overall width.
Length	5' and 10' long straight sections.
Capacity	See Frame Capacity Chart.

Frame Material	Support Centers	Frame Capacity (lbs.) Maximum Distributed Live Load Per Foot	Roller Capacity (lbs.) Maximum Load Per Roller
Galvanized Steel	5'	270	50
Galvanized Steel	10'	38	50
Aluminum	5'	150	35
Aluminum	10'	18	35

Key Applications

Distribution Centers – Perfect for efficiently moving packages, cartons, and pallets through sorting and shipping areas.
Warehouse Order Picking – Enhances speed and organization in picking zones, streamlining inventory management.
Food Processing Lines – Ideal for transporting meats, dairy, baked goods, and produce in clean, sanitary environments.
Assembly Line Operations – Supports component movement between workstations for faster and more organized assembly processes.
Shipping and Receiving Stations – Speeds up the transfer of goods between docks, trucks, and storage racks.
Chemical Handling Facilities – Suitable for transporting chemical containers and materials safely with corrosion-resistant options.
E-Commerce Fulfillment Centers – Helps manage high-volume order picking and packaging operations with minimal manual effort.
Bulk Material Handling – Facilitates the movement of raw or unpackaged materials like grains, powders, or small parts.
Packaging Lines – Assists in transporting packaged goods, cartons, and bundles through different packaging stages.
Temporary Event Logistics – Provides a portable solution for moving equipment and supplies at events, exhibitions, or temporary warehouses.
