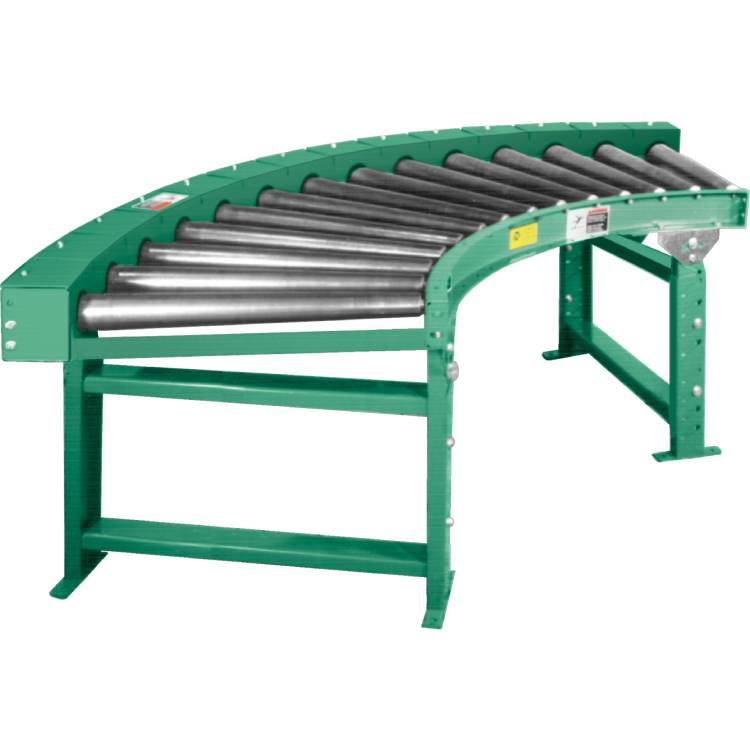

Tapered Roller Conveyors

Conveyor Systems & Engineering, Inc. offers precision-engineered Tapered Roller Conveyors, the ideal solution for maintaining product orientation and smooth flow through turns. Each roller is specifically tapered to ensure consistent speed and prevent product skewing as items move along curved pathways. Experience seamless transitions and optimized space utilization with our expertly designed tapered roller systems.

Eliminate bottlenecks and enhance efficiency in your complex layouts with the strategic advantage of tapered roller conveyors. Their ability to handle directional changes without product damage or manual intervention streamlines operations and maximizes throughput. Built with durability and precision in mind, these conveyors offer a reliable and low-maintenance solution for industries ranging from baggage handling to manufacturing. Trust Conveyor Systems & Engineering, Inc. to provide the perfect curve for your conveying needs.

Product Features

Curved Path Efficiency – Precisely tapered rollers smoothly navigate corners, maintaining product flow.
Orientation Control – Ensures consistent product alignment, preventing jams and damage through turns.
Seamless Merging & Diverging – Facilitates smooth confluence and separation of product lines.
Hands-Free Direction Change – Eliminates manual intervention for product redirection along curves.
Space-Optimizing Design – Enables efficient use of floor space with curved conveyor configurations.
Robust Construction – Durable materials and build quality ensure reliable operation for years to come.
Material & Taper Versatility – Available in various materials and tapers to suit diverse product types.
Integrated System Compatibility – Designed for easy integration with straight conveyor sections.
Minimal Maintenance Needs – Engineered for long-term, low-maintenance operation, reducing downtime.
Enhanced Throughput in Curves – Improves overall system speed and efficiency in complex material flow paths.

Standard Specifications

Bed	Conveying surface widths: 28", 34", 40", 46", 52", 58", and 64". Tapered rollers with 2½" diameter at large end, 11 gauge steel construction, 11⁄16" hex shaft. Mounted in 4" and 6" x 4 gauge powder-coated formed steel channel frames. Sections bolted together with butt couplings and include floor supports.
Drive Chain	No. 50 circular roller chain.
Floor Supports	Heavy-duty adjustable supports (HD-7), 30¼" to 40" from floor to top of roller. One support at each end and intermediate supports with knee braces at every bed joint.
Center Drive	Mounted underneath the conveyor for compact design and balanced drive power.
Bearings	Sealed, pre-lubricated ball bearings for maintenance-free operation.
Chain Guard	Fully enclosed chain guards above and below the roller frame for operator safety.
Speed Reducer	Heavy-duty worm gear C-Face mounted speed reducer for reliable performance.
Motor	¾ HP, 230/460V, 3-phase, 60 Hz Totally Enclosed (TE) industrial motor.
Speed	30 feet per minute (FPM) standard speed.
Capacity	4,000 pounds distributed live load across conveyor bed.

Key Applications

Airport Baggage Handling – Smoothly navigates luggage through curved sections of sorting and transport systems.
Parcel Sortation Hubs – Efficiently merges and diverges packages along curved conveyor lines for distribution.
Curved Manufacturing Lines – Maintains product orientation as items move through bends in the assembly process.
Food & Beverage Processing – Transports containers and packaged goods around curves in production and packaging.
Pharmaceutical Handling – Ensures gentle and controlled movement of delicate items through curved conveyor segments.
Postal Sorting Facilities – Directs mail and packages along curved paths for efficient routing.
Automotive Assembly – Conveys components and sub-assemblies through curved sections of the production line.
Space-Optimized Warehousing – Maximizes storage and flow efficiency by utilizing curved conveyor layouts.
E-commerce Fulfillment – Facilitates the smooth movement of orders through curved paths in sorting and packing areas.
Directional Product Flow – Ideal for any system requiring a change in conveying direction without manual intervention.
